Wiggins Couplings

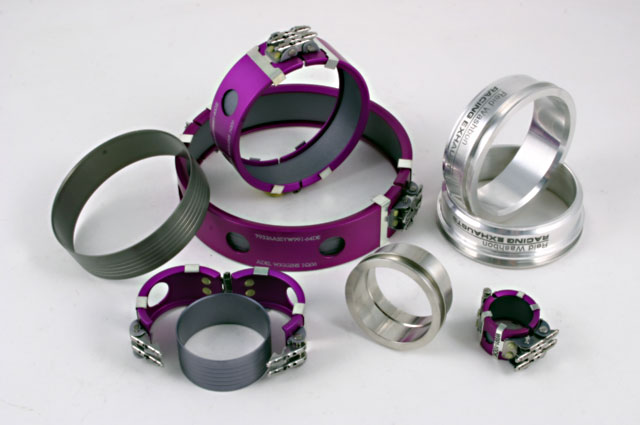

Adel Wiggins flexible tube connectors are an ideal assembly for joining aluminum and stainless steel water, fuel, turbo and intercooler lines. This flexible connection is quick to assemble & disassemble, compact and a high tech alternative to conventional hose & hose clamps. Developed for the aircraft/aerospace industry these couplings will meet the most demanding applications. These couplings can withstand pressures up to 125 psi and temperatures up to 450° F.

Note: Wiggins couplings are not suitable for exhaust applications.

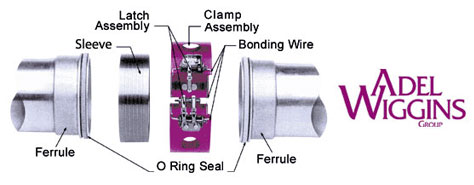

WIGGINS COUPLING	CLAMP WITH SLEEVE	WELD FERRULES		VITON O-RING	REPLACEMENT SLEEVE
TUBE O.D.	PART #	ALUM.	S.S.	SIZE
1/2" (-8)	W991-8DE	W903B-8D	W903B-8C	-.015	W908B-8D
5/8" (-10)	W991-10DE	W903B-10D	W903B-10C	-.017	W908B-10D
3/4" (-12)	W991-12DE	W903B-12D	W903B-12C	-.117	W908B-12D
1" (-16)	W991-16DE	W903B-16D	W903B-16C	-.214	W908B-16D
1 1/4" (-20)	W991-20DE	W903B-20D	W903B-20C	-.218	W908B-20D
1 1/2" (-24)	W991-24DE	W903B-24D	W903B-24C	-.222	W908B-24D
1 3/4" (-28)	W991-28DE	W903B-28D	W903B-28C	-.224	W908B-28D
2" (-32)	W991-32DE	W903B-32D	W903B-32C	-.226	W908B-32D
2 1/2" (-40)	W991-40DE	W903B-40D	W903B-40C	-.230	W908B-40D
3" (-48)	W991-48DE	W903B-48D	W903B-48C	-.234	W908B-48D
3 1/2" (-56)	W991-56DE	W903B-56D	W903B-56C	-.238	W908B-56D
4" (-64)	W991-64DE	W903B-64D	W903B-64C	-.242	W908B-64D

Our 6061 aluminum ferrules are specifically designed for use with standard .065 wall tubing and feature an .065 weld stub for added strength and ease of fabrication. In addition we can offer a female register for the tube to locate into as opposed to the standard butt weld joint. Specify style at time of ordering. 304 Stainless steel ferrules are also available in most sizes. Weld ferrules are compatible with Hydraflow clamps. Please refer our extensive list of mandrel tube bends and straight tubing.

Reid Washbon Racing Exhausts stocks high temperature, fuel and oil resistant Viton O-ring in all sizes…other O-ring materials available upon request.
